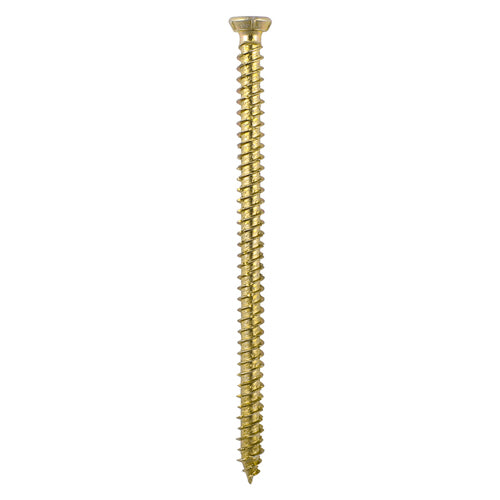

Yellow Flat Countersunk Concrete Screws for Concrete, Brick, Block, Stone & Wood
TIMCO Concrete Screws TX Flat Countersunk Yellow are rapid, effective light-duty anchor screws designed for direct fixing into concrete, brick, stone, concrete block and wood. This through-fixing system provides a single solution and is designed to replace traditional fixings such as nylon frame fixings and hammer fixings.
Manufactured from carbon steel with a zinc plated, yellow passivated finish for increased corrosion resistance, these screws feature a TX30 drive recess to reduce driver wear and prevent cam-out during installation. Serrated V-threads help achieve optimum insertion into masonry, while the high-low thread on the first 30mm aids insertion and reduces torque.
The flat countersunk head with five locking ribs provides a secure fixing and neat finish, making these screws ideal for fitting windows, door frames and other general construction fixings where a flush result is required.
Key Features & Benefits
-
Direct fixing system: Designed for fixing into concrete, brick, block, stone and wood without traditional plugs.
-
Replaces traditional masonry fixings: Suitable as an alternative to nylon frame and hammer fixings.
-
TX30 drive: Helps reduce driver wear and prevents camming-out.
-
Serrated V-threads: Designed to achieve optimum insertion into masonry types.
-
High-low thread design: On the first 30mm to aid insertion and reduce torque.
-
Flat countersunk head: Includes five locking ribs for a flush, secure finish.
-
Yellow passivated finish: Zinc plated for increased corrosion resistance.
-
All-steel fixing: Non-flammable fixing conforming to BS 7671 18th Edition requirements for supported wiring systems.
Typical Uses
- Fixing into concrete
- Fixing into brickwork
- Fixing into concrete block
- Fixing into stone
- Fixing into timber
- Ideal for fitting windows and door frames
Available Sizes
- 7.5 x 40mm
- 7.5 x 50mm
- 7.5 x 60mm
- 7.5 x 70mm
- 7.5 x 80mm
- 7.5 x 90mm
- 7.5 x 100mm
- 7.5 x 110mm
- 7.5 x 120mm
- 7.5 x 130mm
- 7.5 x 150mm
- 7.5 x 180mm
- 7.5 x 200mm
- 7.5 x 250mm
Product Details
-
Product Type: Concrete Screws - TX - Flat Countersunk - Yellow
-
Diameter: 7.5mm
-
Drive Type: TX30
-
Head Type: Flat Countersunk with Ribs
-
Finish: Zinc & Yellow
-
Material: Carbon Steel
-
Drill Hole Diameter: 6mm
-
Fixture Hole Size: 8mm
-
Recess Type: TX Drive
-
Point Type: Sharp
-
Thread Type: High-Low Start with V Flutes
-
Thread Coverage: Fully Threaded
-
Included Item: TX30 S2 Bit (Qty 1)
-
Substrates: Wood, Concrete, Brick, Block, Stone
