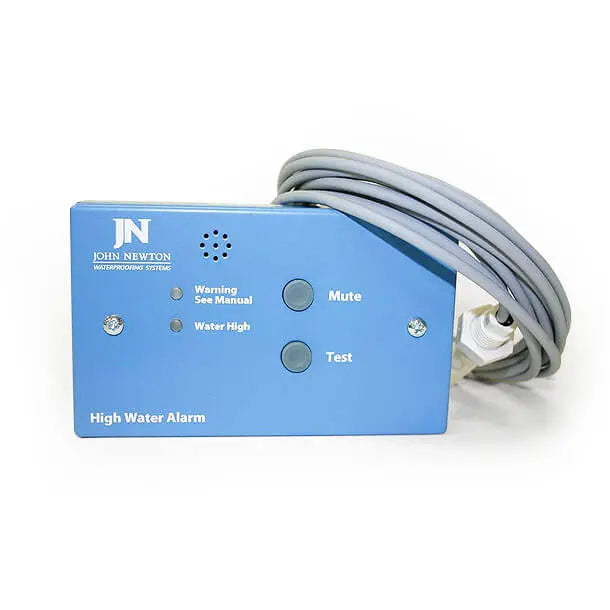

Newton High Water Level Alarm

Audible and Visual Alarm System for Basement Pump and Waterproofing Installations

The Newton High Water Level Alarm is an essential monitoring device for use with sump pump systems and cavity drain waterproofing installations. Designed to detect and alert users to abnormally high water levels within sump chambers, this unit provides both audible and visual alarms for rapid response. Ideal for basements, plant rooms, and critical below-ground areas, it offers peace of mind and early-warning protection against flooding.

Key Features & Benefits

• Early Warning System: Provides an alert before water reaches critical levels in sump chambers.
• Audible & Visual Alerts: High-decibel sounder and bright LED indicator ensure clear notification of alarm condition.
• Battery Backup: Includes 9V battery backup for functionality during mains power failure.
• Simple Installation: Wall-mountable enclosure with float switch sensor for straightforward setup.
• System Compatibility: Compatible with Newton sump systems and suitable for other cavity drain waterproofing setups.

Product Details

• Power Supply: 230V AC mains (UK 3-pin plug)
• Backup: 9V battery included for power failure protection
• Alarm Output: 80dB buzzer with LED indicator
• Sensors: Float switch for high water detection
• Mounting: Wall-mountable enclosure (IP rated)
• Dimensions: Approx. 150mm x 150mm x 80mm
• SKU: NHWA01

Application Instructions

1. Mount Control Panel: Fix the alarm unit to a suitable internal wall above the sump chamber.
2. Install Float Switch: Position the float switch inside the sump at the desired alarm activation level.
3. Connect Power: Plug into a 230V mains socket and ensure battery backup is installed.
4. Test System: Manually raise the float switch to test audible and visual alarm functions.

Limitations

• This unit is an alert-only system and does not activate or control pumps.
• Must be installed in dry indoor locations or inside an IP-rated enclosure if moisture is present.

Health & Safety

Ensure installation is carried out by a qualified technician if hard-wiring is required. Always isolate power before installation or maintenance. Refer to the product manual for full guidance.
