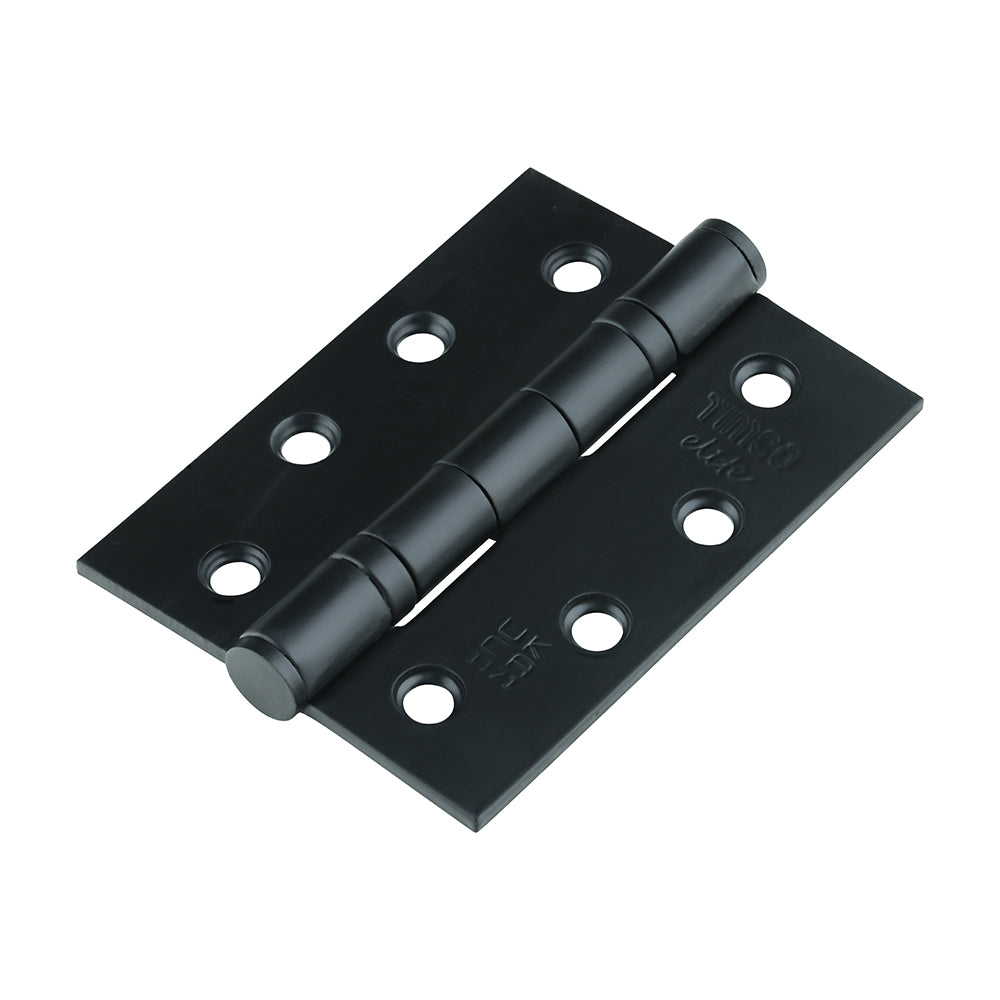

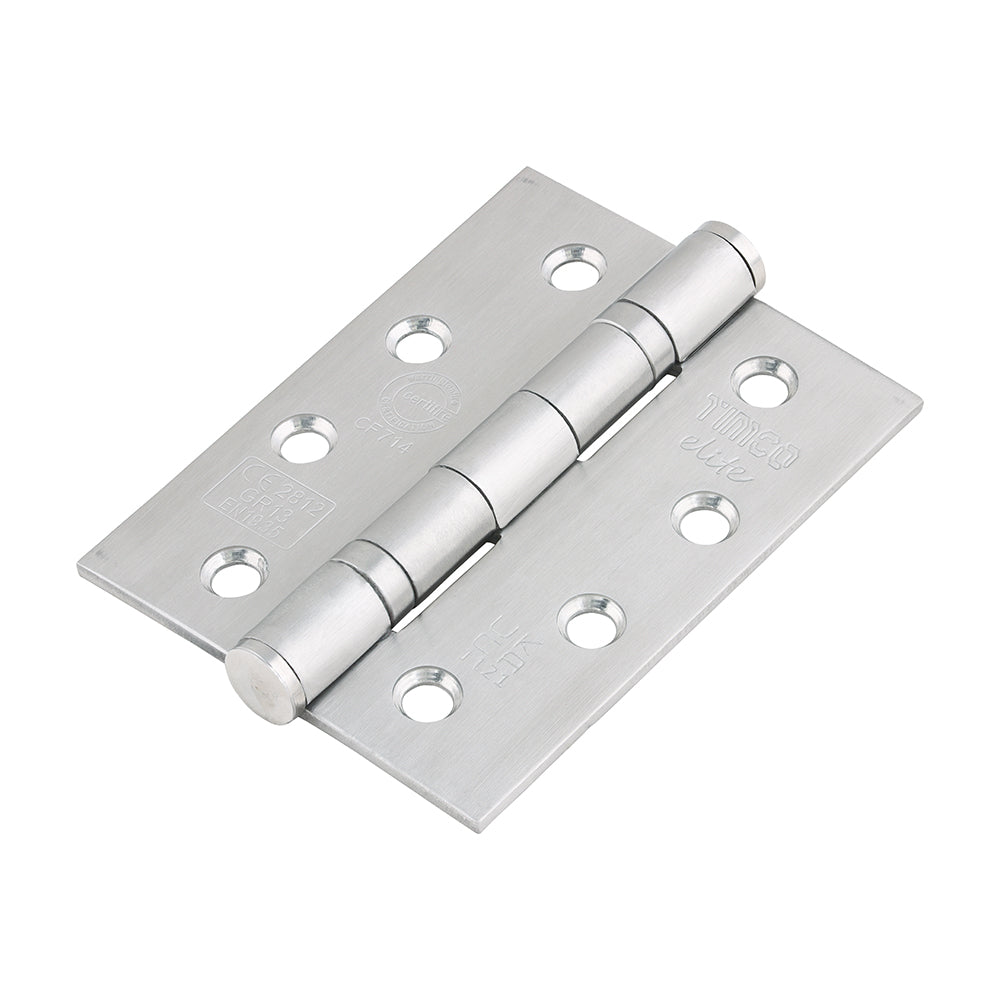

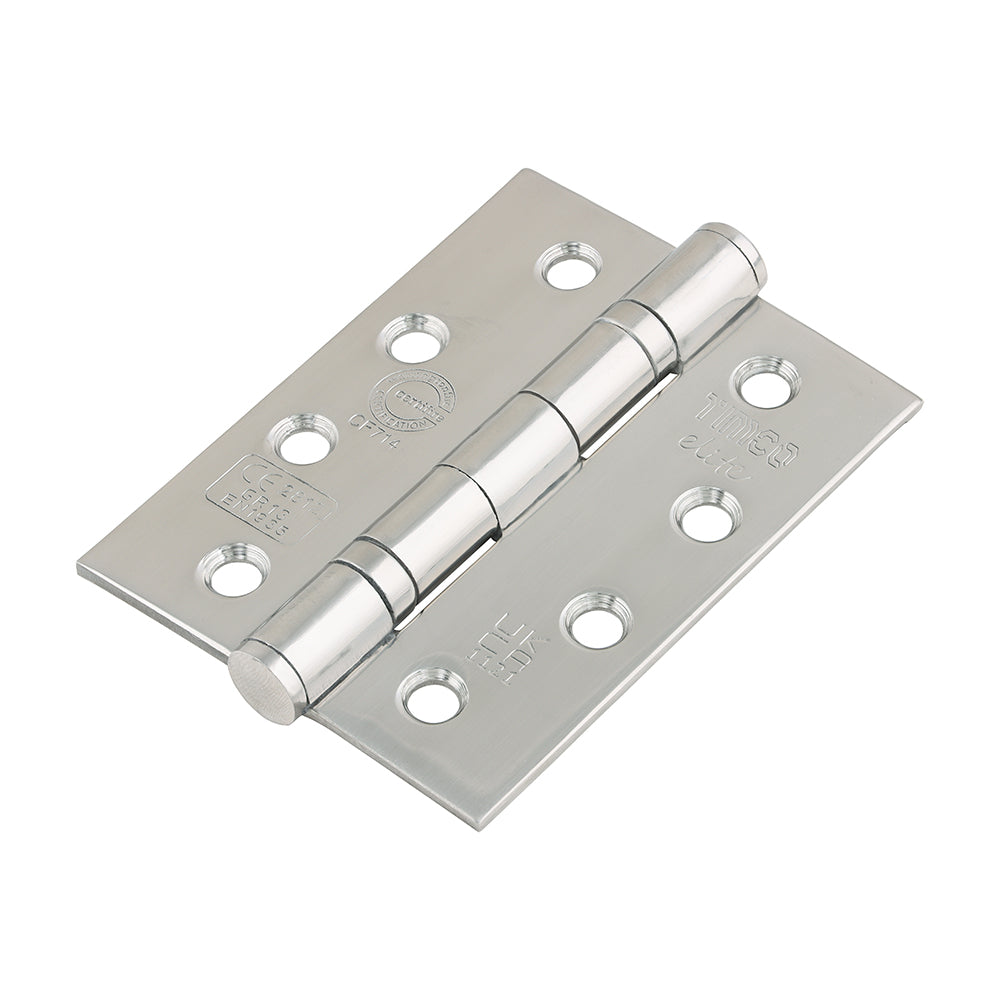

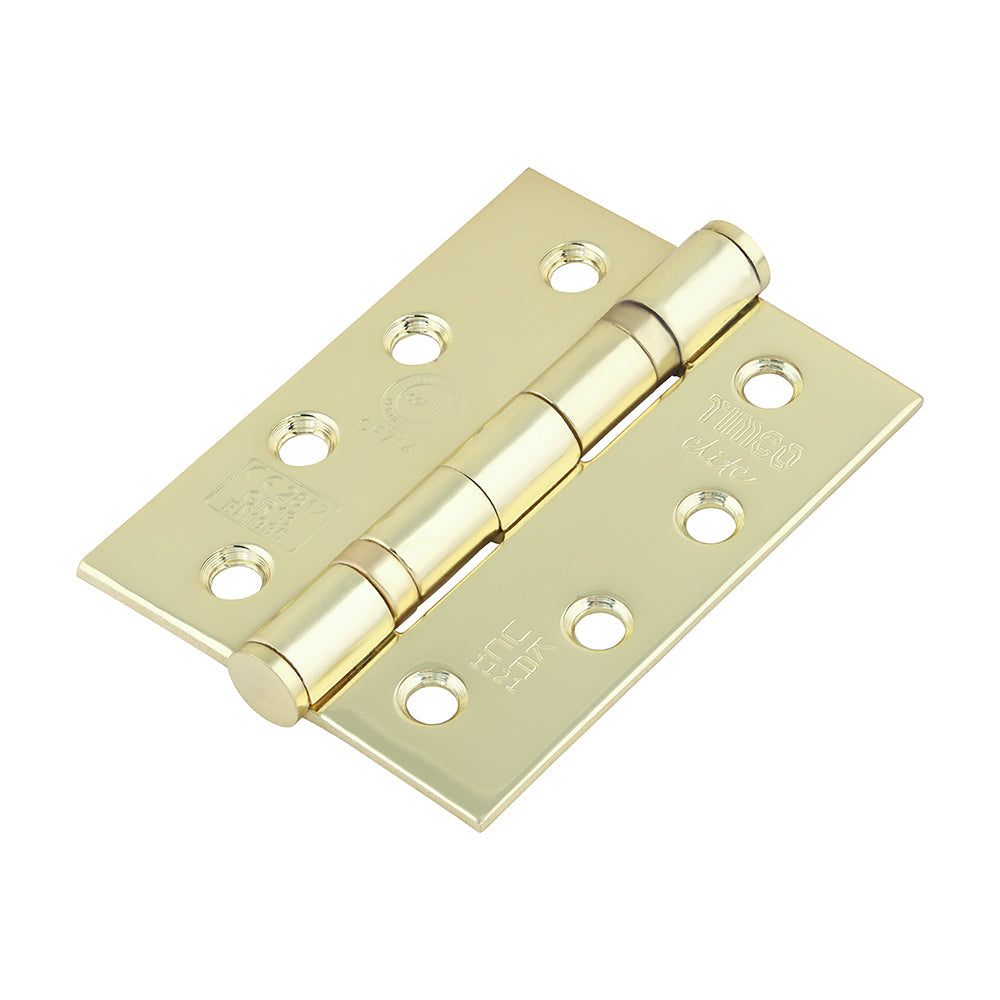

Grade 13 Ball Bearing Fire Door Hinges – 101 x 76mm – 30/60 Minute Rated

£7.69

VAT included Shipping calculated at checkout.

Grade 13 Ball Bearing Fire Door Hinges (101 x 76mm) are FD30/FD60 rated and BS EN 1935 certified for heavy-duty fire doors up to 120kg. With a ball bearing design for smooth, durable operation, they are CE marked for compliance and ideal for high-traffic commercial and residential doors. Available in Satin Stainless Steel, Polished Stainless Steel, Electro Brass, and Matt Black finishes. Supplied in pairs.

Finish

Satin Stainless Steel Polished Stainless Steel Electro Brass Matt Black

Product variants

Delivery and Shipping

Place your order before 3pm for next working day delivery.

Please note: Additional delivery charges may apply for Northern Ireland, Isle of Wight, Isle of Man, Isles of Scilly, Scottish Highlands & Islands, and Channel Islands. We will contact you to inform you of any additional costs once your order is received, or you can call us on 0800 111 4898 beforehand to confirm.

Description

Grade 13 Ball Bearing Fire Door Hinges – 30/60 Minute Rated

The TIMCO Grade 13 Ball Bearing Fire Door Hinges (101 x 76mm) are premium-quality, heavy-duty hinges designed for FD30 and FD60 rated fire doors. Certified to BS EN 1935 and CE marked, they are suitable for doors up to 120kg, making them ideal for high-traffic commercial and residential installations. Featuring a ball bearing design for smooth, long-lasting operation, these hinges combine maximum fire safety compliance with durability and style. Available in a range of finishes to suit any project.

Key Features & Benefits

Fire Rated: Tested for FD30/FD60 fire doors (30/60 minutes).
Grade 13 Certified: BS EN 1935 and CE compliant for doors up to 120kg.
Ball Bearing Design: Ensures smooth, silent operation and reduces wear.
Durable Build: Designed for heavy-duty, high-traffic applications.
Available Finishes: Satin Stainless Steel, Polished Stainless Steel, Electro Brass, Matt Black.

Product & Technical Details

Size: 101 x 76mm (4” x 3”)
Fire Rating: 30/60 minutes (FD30/FD60)
Classification: Grade 13 – BS EN 1935
CE Marked: Yes
Max Door Weight: Up to 120kg
Material: Stainless Steel or Steel (depending on finish)
Hinge Type: Ball Bearing Fire Door Hinge
Pack Quantity: Supplied in pairs
Finishes: Satin Stainless Steel, Polished Stainless Steel, Electro Brass, Matt Black

Suitable Applications

FD30/FD60 rated fire doors
Heavy-duty commercial doors
Residential fire safety installations
Public buildings and high-traffic environments

Installation Instructions

Select Grade 13 hinges for heavy FD30/FD60 doors up to 120kg.
Mark hinge positions and cut recesses for a flush fit.
Pre-drill pilot holes and secure with fire-rated countersunk screws.
Check alignment to ensure smooth operation.
Fit intumescent hinge pads where required by certification.

Limitations & Precautions

Must only be used on FD30/FD60 doors within rated specifications.
Install in accordance with fire certification and building regulations.
Use intumescent hinge pads if specified by test evidence.

The TIMCO Grade 13 Ball Bearing Fire Door Hinges (101 x 76mm) provide the highest level of strength, compliance, and performance, making them the ideal choice for fire door installations in commercial, residential, and public buildings.
