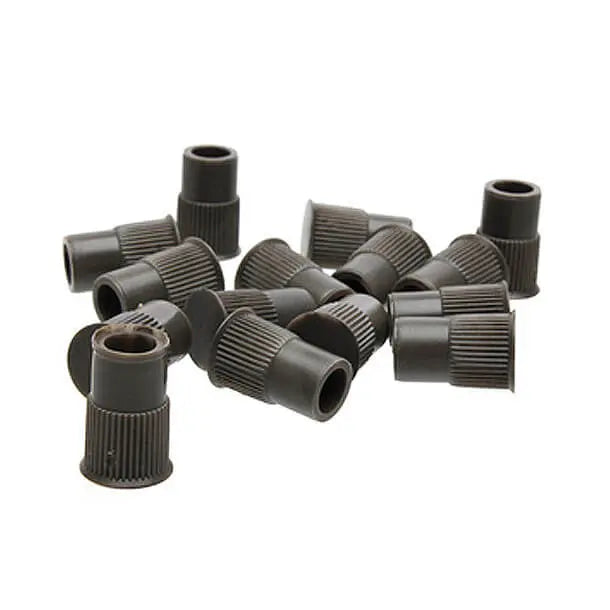

Dryzone Plugs 12mm (1000 Pack)

High-Strength Membrane Fixing Plugs with Optional Screw Fixing

Dryzone 12mm Plugs are robust mechanical fixings used to securely anchor cavity drain and damp-proofing membranes to walls constructed of brick, stone, or concrete. Designed for use with 12mm drill holes, these plugs offer excellent grip and a watertight seal when used with compatible sealing washers or mastic.

Supplied in a bulk pack of 1000, these high-performance plugs are ideal for large-scale internal waterproofing and damp-proofing applications. Their hollow core allows for the optional use of self-tapping screws, enabling you to fix battens, plasterboard, or tracking systems directly over the membrane.

Key Features & Benefits

• Strong Hold: Ribbed body provides secure anchoring in brick, stone, and concrete substrates.
• Compatible with 12mm Holes: Designed to fit snugly into standard 12mm drill holes.
• Optional Screw Fixing: Central recess accepts 5mm self-tapping screws for attaching battens or boards.
• Watertight Seal (When Used with Washer or Mastic): Prevents water ingress around the fixing point.
• Large-Scale Use: Supplied in a cost-effective pack of 1000 for commercial and remedial projects.

Product Details

• Plug Diameter: 12mm
• Plug Length: Approx. 60mm
• Pack Size: 1000 plugs
• Compatible Surfaces: Brickwork, blockwork, concrete, stone
• Applications: Internal wall membrane fixing, batten support, plasterboard framework

Application Instructions

1. Drill Holes: Use a 12mm masonry drill bit to make fixing holes at the recommended centres (typically 250mm apart).
2. Insert Plug: Drive the plug through the membrane and into the pre-drilled hole.
3. Seal (Optional): Use sealing washers or mastic around the plug head to ensure a watertight finish.
4. Fix Batten or Board (Optional): Insert a 5mm screw into the plug to attach battens, tracking, or boards.

Limitations

• Not suitable for use in soft, loose, or crumbling substrates without pre-treatment or consolidation.
• For waterproof installations, ensure proper sealing around each plug.

Health & Safety

Always wear appropriate PPE including eye protection and gloves during installation. Follow the membrane manufacturer’s spacing and installation guidelines for best results.
