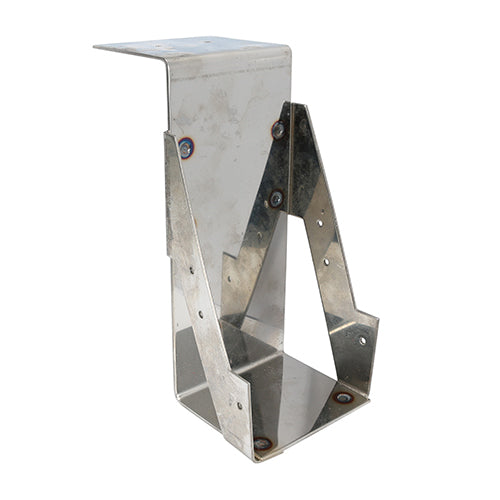

Welded Masonry Joist Hanger – Galvanised – 100 x 225mm (6 Pack)
Designed to support 100 x 225mm timber joists from brick or block walls. This welded masonry joist hanger can be built into new masonry or installed during renovation by raking out existing brickwork, providing a secure joist bearing and a dependable connection for floor and roof structures.
| Product code | 100225WMH |
|---|---|
| Type | Welded |
| Finish | Galvanised |
| Joist size (W x H) | 100 x 225mm |
| Width (W) | 100mm |
| Height (H) | 215mm |
| Bearing (B) | 75mm |
| Thickness | 2.4mm |
| Nail holes (3.75mm) | 6 |
| Safe working load | 3.5kN |
| Approval | BS 5628 |
| CE standard | BS EN 845-1:2013+A1:2016 |
| Eurocode | 6 |
| Service class | 2 |
| Corrosion rating (1–5) | 2 – Occasionally damp/wet, rural and sheltered areas |
| Material | Carbon Steel |
| Pack type | Unit |
| Pack quantity | 1 Each |
| Packs Received | 6 |
| Pack dimensions (L x W x H) | 215 x 100 x 75mm |
| Pack weight | 0.9kg |
