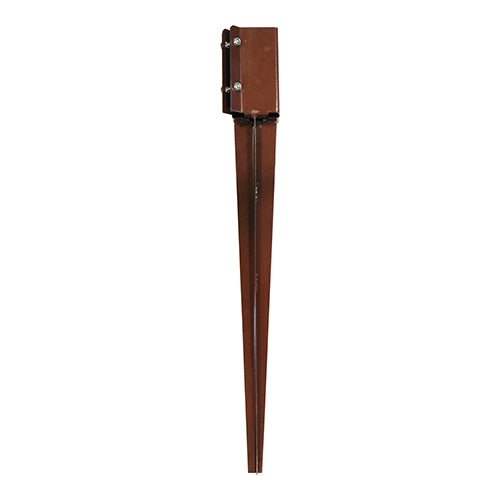

Drive-In Post Spike (Bolt Secure, Oxide Red) provides a fast, no-dig way to install timber fence and gate posts in firm ground. The heavy-duty steel spike is driven into the soil to form a secure foundation, while opposed clamping bolts grip the post above ground for a rigid, twist-resistant hold. The oxide red coating offers corrosion resistance and a clean, professional finish.
Key Features & Benefits
-
No-Dig Installation: Drive straight into firm ground—ideal where excavation would disturb paving, roots or services.
-
Bolt-Secure Clamping: Opposing through-bolts lock the post for a strong, twist-resistant connection.
-
Above-Ground Protection: Keeps end grain out of standing water to help reduce rot risk.
-
Durable Finish: Oxide red coating for outdoor corrosion resistance and tidy appearance.
-
Quick & Accurate: Use with a drive-in tool for rapid alignment and consistent results.
Available Sizes
| To Suit Post Size (mm) |
To Suit Post Size (inch) |
| 50 × 50 |
2 × 2 |
| 70 × 70 |
2 3⁄4 × 2 3⁄4 |
| 75 × 75 |
3 × 3 |
| 90 × 90 |
3 1⁄2 × 3 1⁄2 |
| 100 × 100 |
4 × 4 |
Product & Technical Details
-
Type: Drive-in post spike (bolt-secure clamp)
-
Material: Heavy-gauge steel
-
Finish: Oxide red coating
-
Fixing Method: Drive spike into ground; clamp post with opposed bolts
-
Applications: Fencing, light gates, pergolas, signage and garden structures
Instructions for Use
- Mark the post line. Place the spike and start square to the surface.
- Using a compatible drive-in tool and sledge, drive the spike to depth, checking plumb frequently.
- Insert the post fully into the shoe; plumb and square it, then tighten clamping bolts evenly.
- Re-check alignment after initial settling; retighten during routine inspections.
Limitations & Precautions
- For firm ground only; in soft/peaty soils or where high uplift/lateral loads exist, consider concrete-in or bolt-down solutions.
- Do not strike the shoe directly—always use a drive-in cap or tool to prevent damage.
- Cut post ends square and treat end grain with preservative before clamping.
A robust, no-dig fixing that speeds up fence and frame installs—drive in, clamp tight and protect the post end above ground for a long-lasting, professional result.
