Grade 11 Ball Bearing Fire Door Hinges – 101 x 76mm – 30/60 Minute Rated

£7.19

VAT included Shipping calculated at checkout.

Grade 11 Ball Bearing Fire Door Hinges (101 x 76mm) are FD30/FD60 rated and BS EN 1935 certified for use on fire doors up to 80kg. Featuring a ball bearing mechanism for smooth, durable operation, they are CE marked for compliance and ideal for high-traffic commercial or residential doors. Available in Satin Nickel, Polished Chrome, Electro Brass, and Satin Chrome finishes. Supplied in pairs.

Finish

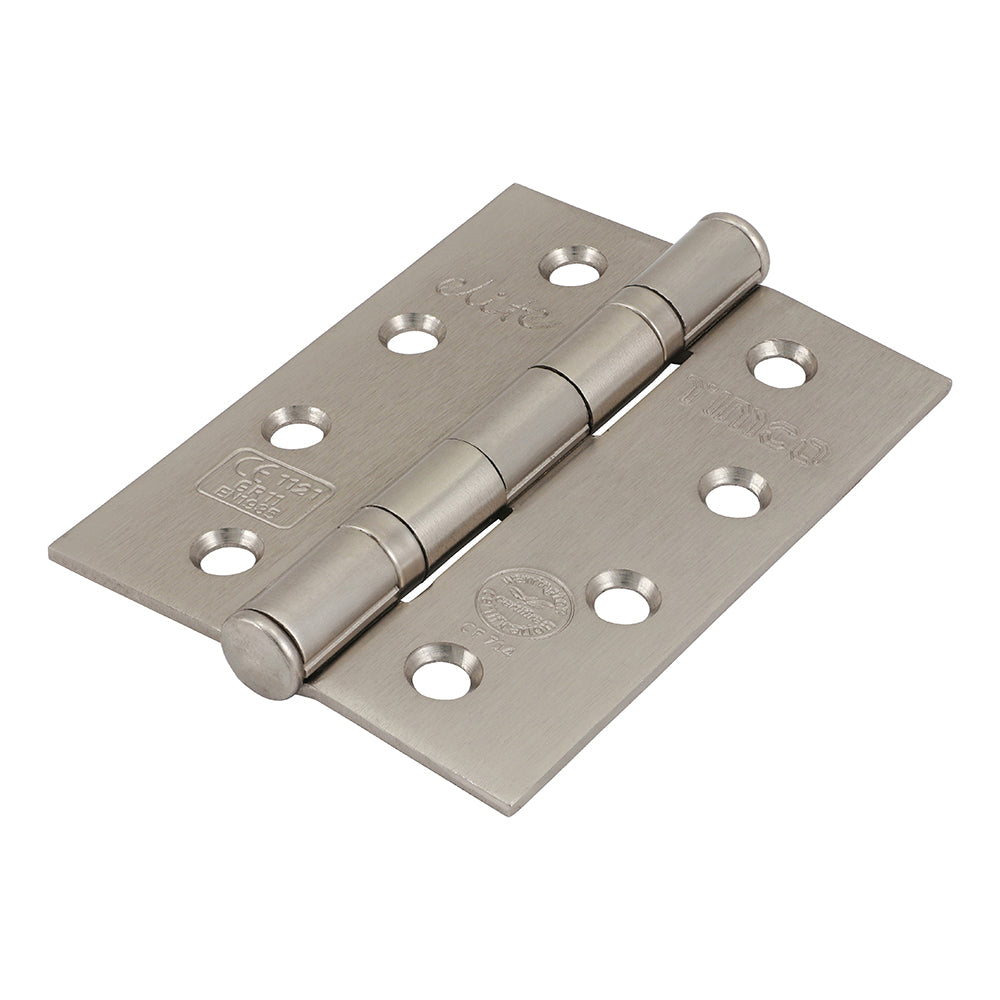

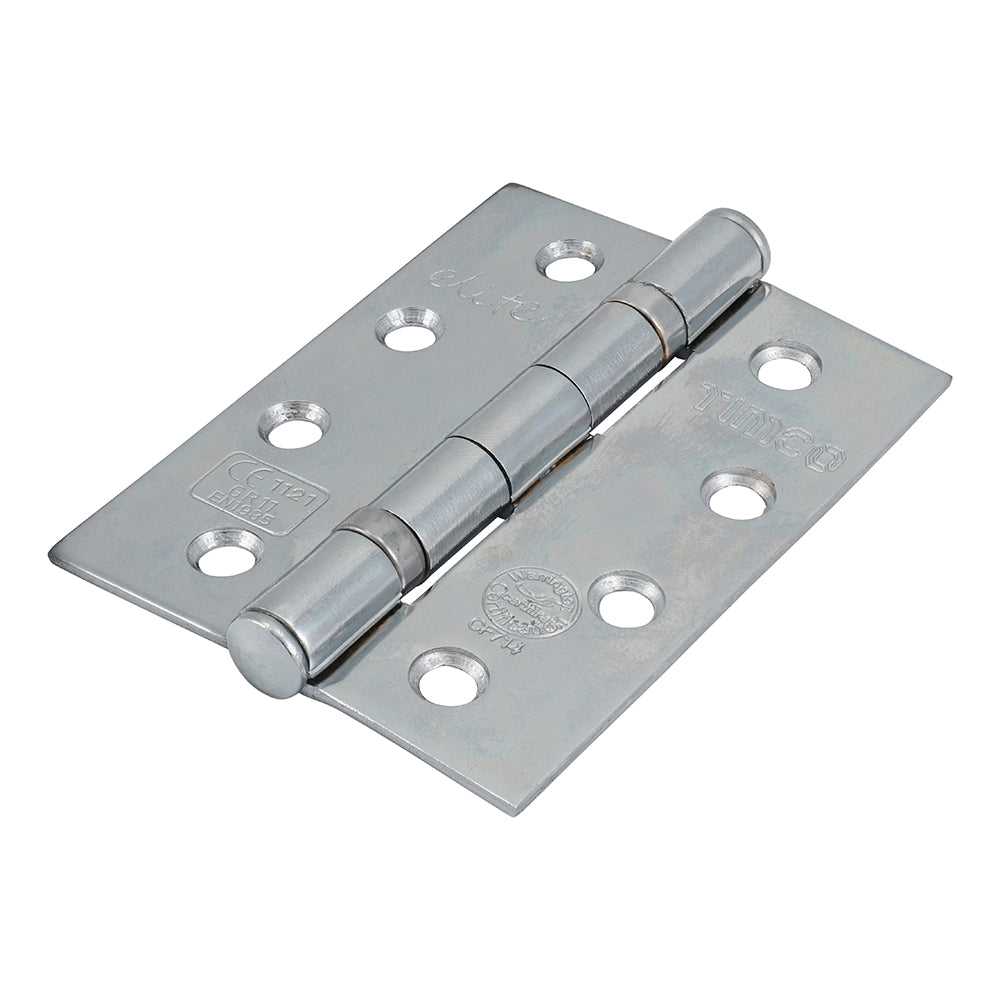

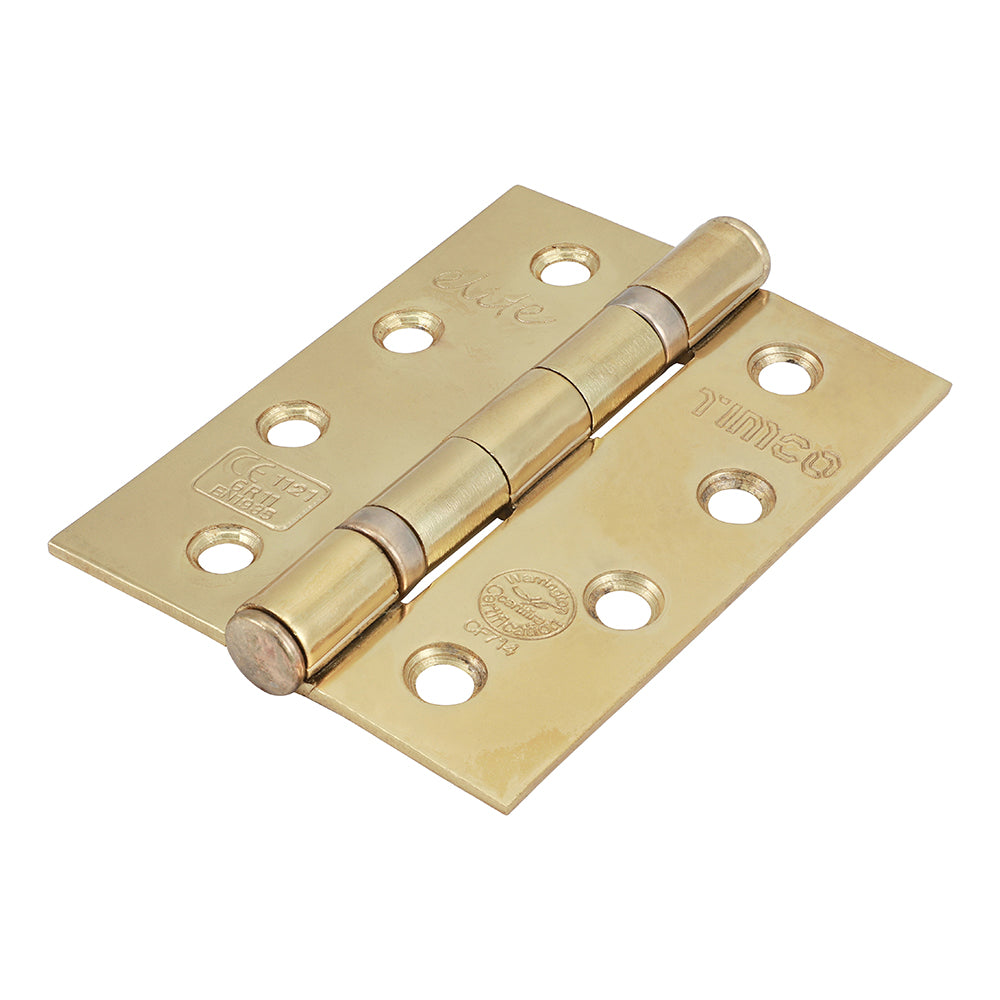

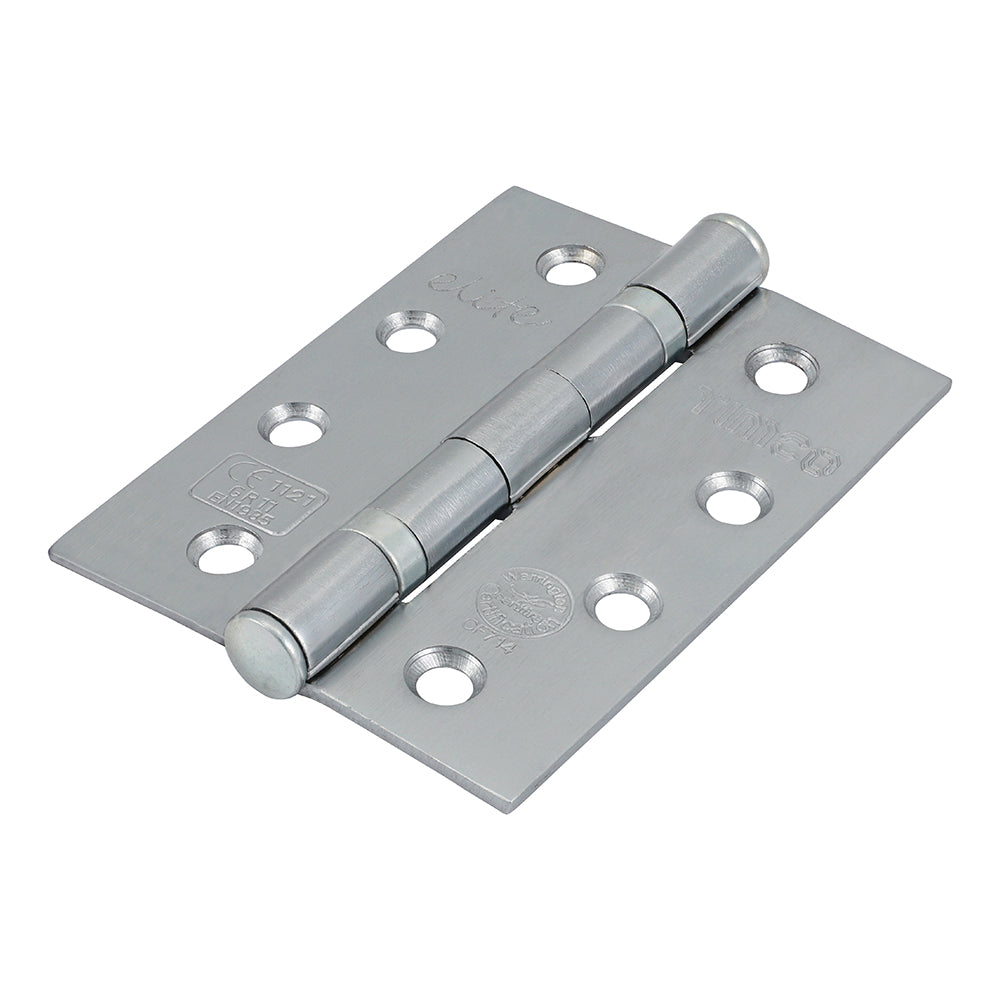

Satin Nickel Polished Chrome Electro Brass Satin Chrome

Product variants

Delivery and Shipping

Place your order before 3pm for next working day delivery.

Please note: Additional delivery charges may apply for Northern Ireland, Isle of Wight, Isle of Man, Isles of Scilly, Scottish Highlands & Islands, and Channel Islands. We will contact you to inform you of any additional costs once your order is received, or you can call us on 0800 111 4898 beforehand to confirm.

Description

Grade 11 Ball Bearing Fire Door Hinges – 30/60 Minute Rated

The TIMCO Grade 11 Ball Bearing Fire Door Hinges (101 x 76mm) are heavy-duty hinges designed and tested for use on FD30 and FD60 rated fire doors. Certified to BS EN 1935 and CE marked, these hinges are suitable for doors up to 80kg, providing safety, strength, and compliance. The ball bearing design ensures smooth, reliable operation while reducing wear, making them ideal for high-traffic commercial and residential applications. Available in multiple finishes, they offer both performance and style.

Key Features & Benefits

Fire Rated: Suitable for FD30 and FD60 fire doors (30/60 minutes).
Grade 11 Certified: BS EN 1935 compliant for doors up to 80kg.
Ball Bearing Mechanism: Reduces friction, minimises wear, and ensures smooth door action.
Durable Construction: Built for frequent use in demanding environments.
Range of Finishes: Satin Nickel, Polished Chrome, Electro Brass, Satin Chrome.

Product & Technical Details

Size: 101 x 76mm (4” x 3”)
Fire Rating: 30/60 minutes (FD30/FD60)
Classification: Grade 11 – BS EN 1935
CE Marked: Yes
Maximum Door Weight: 80kg
Material: Steel
Hinge Type: Ball Bearing Fire Door Hinge
Pack Quantity: Supplied in pairs
Finishes: Satin Nickel, Polished Chrome, Electro Brass, Satin Chrome

Suitable Applications

FD30 and FD60 rated fire doors
Commercial and residential high-traffic doors
Medium to heavy internal timber doors
Compliance-driven installations requiring certified hardware

Installation Instructions

Confirm fire door specification and select Grade 11 hinges.
Mark and recess hinge positions on door and frame for a flush fit.
Pre-drill pilot holes and secure with fire-rated countersunk screws.
Check door alignment and operation, ensuring smooth action.
Install with intumescent hinge pads where required by certification.

Limitations & Precautions

For use only with FD30/FD60 fire doors up to 80kg.
Must be installed in accordance with fire certification guidelines.
Always use intumescent hinge pads if specified in test evidence.

The TIMCO Grade 11 Ball Bearing Fire Door Hinges (101 x 76mm) combine certified fire safety with heavy-duty strength and smooth performance, making them the ideal choice for compliant fire door installations in commercial and residential settings.
