Newton High Water Level Alarm

Name: Newton High Water Level Alarm
Brand: John Newton
SKU: PA50
Price: 106.80 GBP
Availability: InStock

£106.80

VAT included Shipping calculated at checkout.

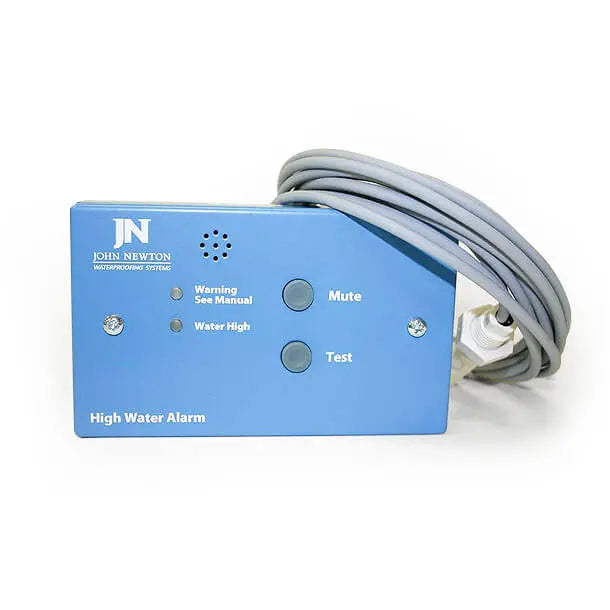

The Newton High Water Level Alarm is a mains-powered audible and visual alarm for sump pump systems. It alerts users when water reaches a critical level in the sump chamber, helping to prevent flooding. Includes a float switch, battery backup, and LED indicator. Ideal for basements and below-ground waterproofing systems.

Delivery and Shipping

Place your order before 3pm for next working day delivery.

Please note: Additional delivery charges may apply for Northern Ireland, Isle of Wight, Isle of Man, Isles of Scilly, Scottish Highlands & Islands, and Channel Islands. We will contact you to inform you of any additional costs once your order is received, or you can call us on 0800 111 4898 beforehand to confirm.

Description

Audible and Visual Alarm System for Basement Pump and Waterproofing Installations

The Newton High Water Level Alarm is an essential monitoring device for use with sump pump systems and cavity drain waterproofing installations. Designed to detect and alert users to abnormally high water levels within sump chambers, this unit provides both audible and visual alarms for rapid response. Ideal for basements, plant rooms, and critical below-ground areas, it offers peace of mind and early-warning protection against flooding.

Key Features & Benefits

Early Warning System: Provides an alert before water reaches critical levels in sump chambers.
Audible & Visual Alerts: High-decibel sounder and bright LED indicator ensure clear notification of alarm condition.
Battery Backup: Includes 9V battery backup for functionality during mains power failure.
Simple Installation: Wall-mountable enclosure with float switch sensor for straightforward setup.
System Compatibility: Compatible with Newton sump systems and suitable for other cavity drain waterproofing setups.

Product Details

Power Supply: 230V AC mains (UK 3-pin plug)
Backup: 9V battery included for power failure protection
Alarm Output: 80dB buzzer with LED indicator
Sensors: Float switch for high water detection
Mounting: Wall-mountable enclosure (IP rated)
Dimensions: Approx. 150mm x 150mm x 80mm
SKU: NHWA01

Application Instructions

Mount Control Panel: Fix the alarm unit to a suitable internal wall above the sump chamber.
Install Float Switch: Position the float switch inside the sump at the desired alarm activation level.
Connect Power: Plug into a 230V mains socket and ensure battery backup is installed.
Test System: Manually raise the float switch to test audible and visual alarm functions.

Limitations

This unit is an alert-only system and does not activate or control pumps.
Must be installed in dry indoor locations or inside an IP-rated enclosure if moisture is present.

Health & Safety

Ensure installation is carried out by a qualified technician if hard-wiring is required. Always isolate power before installation or maintenance. Refer to the product manual for full guidance.
